Coalescers, Liquid/Gas, Liquid/Liquid, Gas Particulate

High Efficiency Coalesers

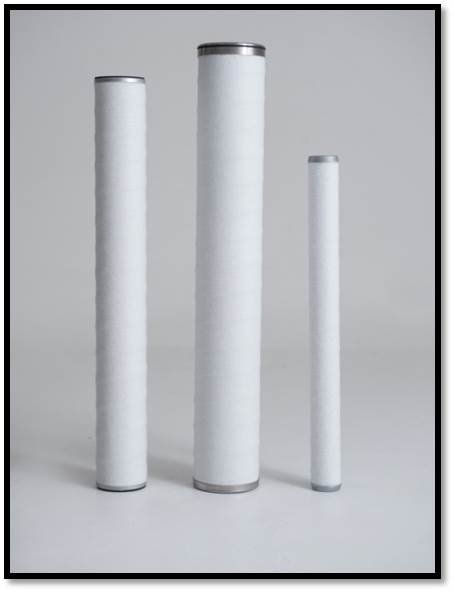

FMT High Efficiency Coalescer Elements have been engineered and constructed to provide superior high efficiency sub-micron liquid aerosol coalescence, producing effective separation and removal of liquids from gas streams.

This series of coalescers offers proprietary aerosol interception, liquid coalescence, and liquid drainage layers, co-pleated to ensure a sturdy, high surface area, low pressure drop system.

FMT’s unique micro-fiber media ensures efficient separation of liquid aerosols from gas streams while minimizing fluid retention.







Features/Benefits:

•Separation Efficiencies of 99% & 99.98% for Medium and High Efficiency Process Requirements

•Low Pressure Drop Materials/Construction for more Efficient, Cost Effective Liquid Aerosol Separations

•Cost Effective Solutions Allowing Upgrades to Higher Efficiencies at Little or No Cost Increase

•Customized Configurations Available for New and Existing Vessels & Design Requirements to Exceed Stringent Process Design Specifications



FMT-LG-28

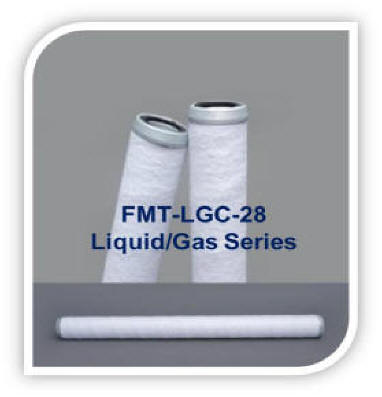

FMT-LGC-28

Dimensions: 2.75” OD x 1.5” ID x 30” long

Micron Ratings: 0.1 & 0.3 micron @ 99.0% & 99.98%

Replacement For: CC3LG and JPMG-30226 Style Coalescers

3 to 5.25 MMSCFD per element







FMT-LG-28

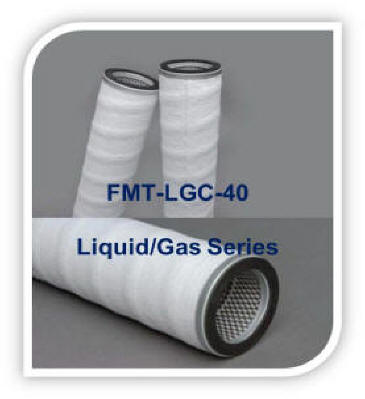

FMT-LGC-40

Dimensions: 4.5” OD x 3.25”, 3.125", or 2.875" ID x 36” long

Micron Ratings: 0.1 & 0.3 micron @ 99.0% & 99.98%

Replacement For: PCHG336, NGGC336 FG336, FG372, PRE003, LGG40, NFF36R, and JPMG-336-R Style Coalescers

7.5 to 15 MMSCFD per element







FMT-LG-28

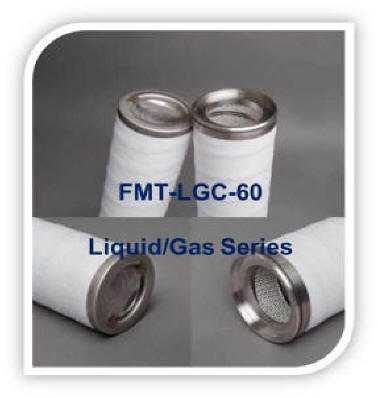

FMT-LGC-60

Dimensions: 6.0” OD x 4” ID x 40” long

Micron Ratings: 0.1 & 0.3 micron @ 99.0% & 99.98%

Replacement For: 604, CS604, and JPMG-536-R, and 640 Style Coalescers

15 to 30 MMSCFD per element







---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

FMT-LG-28

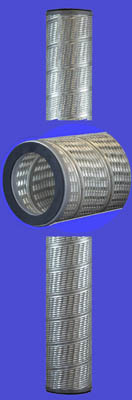

High Efficiency Gas Filters For Compressors And Coalesers



FMT-GAS40 Gas Filter Series Particulate Filters to Protect Coalescers, Compressors, Gas Turbines, Burners, Fuel Gas Systems. 36 or 72 Inch Long, Various Diameters, Pleated Microfiber, Various Micron Ratings and Medias.









--------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

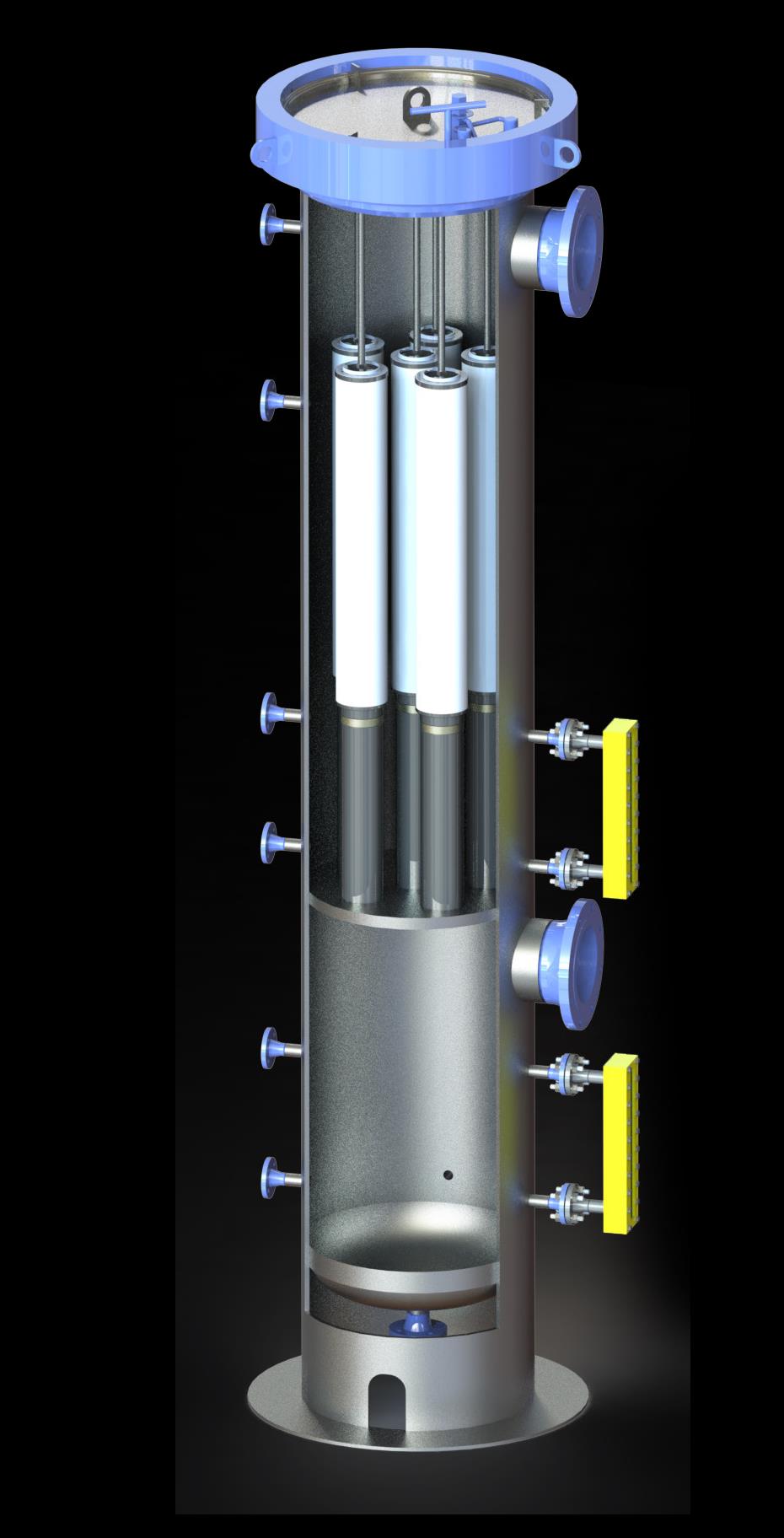

High Efficiency Liquid/Liquid Coalesers and Vessels



FMT-LG-28



FMT-LLC-37

Dimensions: 3.75” OD x 40” long

Micron Ratings: 0.5, 2, 5, 10, 20, 40 micron @ 99.0%

Replacement For: LCS2H1HAH, LCS4HAH, LSS2F1H, LCY2Y2YJ, LCS2ELBH, LCS4ELBH, JPMP 40340-5-V-SS, Style Coalescers





----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------





-------------------------------------------------------------------------------

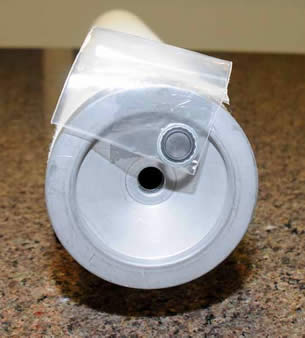

The #5 Locking Cap and Tool are Employed to Remove/Replace Recessed Filters Without Entering the Pressure Vessel. The Stat-O-Seal Gasket is Employed to Gas Seal the 1/2" Support Rod to the End Cap for High Pressure SOE FMT Coalescers. Only Reqires 5-7 Ft-Lb's torque to seal.

-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------



Filtration & Membrane Technology, Inc.8342 Silvan Wind, Houston, TX, 77040 Phone: 713-870-1120 Fax: 713-422-2533
